Stove pipe accessory with trivet-like shelves

Image shared courtesy of Carole & Larry Meeker.

Have you ever spotted one of these cast iron “trivets” and wondered about its origin and purpose? Well, it’s actually a piece from a stove pipe shelf!

A stove pipe connects the exhaust from a wood stove to the chimney. Most of today’s high efficiency wood stoves employ a 6″ stovepipe. But earlier cast iron wood stoves required an 8″ stovepipe to vent properly.

The stove pipe shelf is an ingenious invention, adding even more utility to the wood cook stove. With the stove fired up, the heat from the pipe transfers into the shelves, providing an ideal spot to warm foods or to dry mittens.

★ If anyone has a wood burning stove with any version of a stove pipe shelf installed, please Contact Me. I’d like to share your image in a future blog Update.

1883 Stove Pipe Shelf with Patent No. 277,294



This device was patented on May 8, 1883 by Joseph Kurtis of Springfield, Ohio. The patent date is inscribed on the center ring.

The cast iron stove pipe shelf consists of an adjustable band that fastens around an 8″ vertical stove pipe. Five trivet-like shelves, attached via socket and shank, surround the stove pipe. They can be locked horizontally or folded down parallel to the pipe.

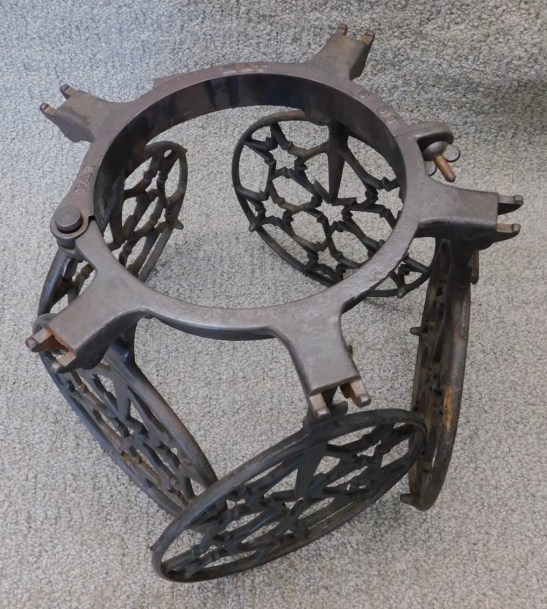

Each shelf has two small feet on the reverse, visible on the model drawing as well as on the third Meeker image below. It’s notable that Joseph Kurtis never used the word trivet in his two page description; so from now on I’ll refer to these detachable shelves as trivet-like.

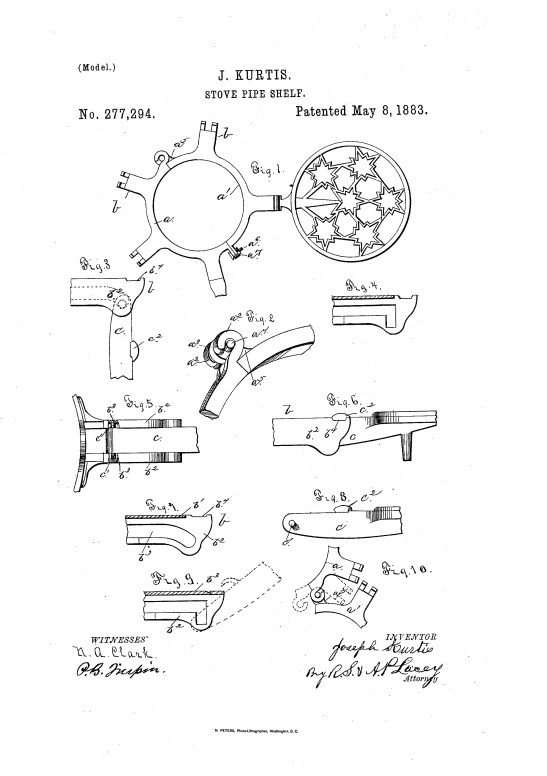

Here’s the  Stove pipe shelf patent on Google.  If you download the PDF you’ll be able to view the second page of the patent description. All three pages appear below in the Gallery.

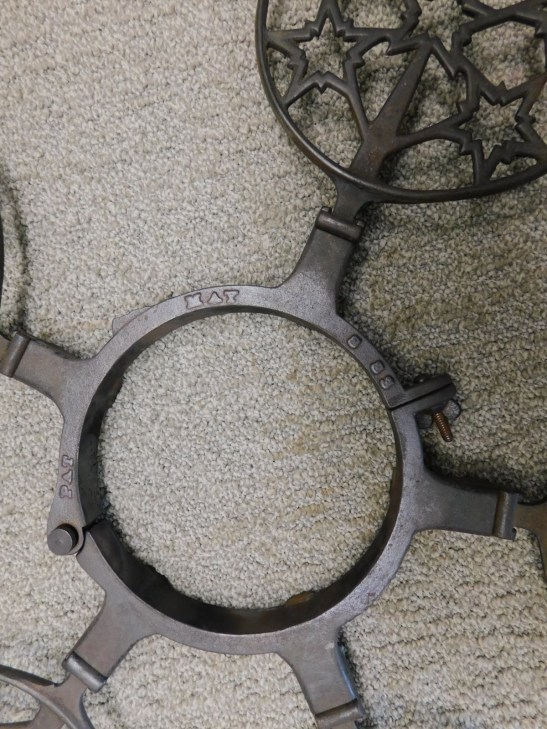

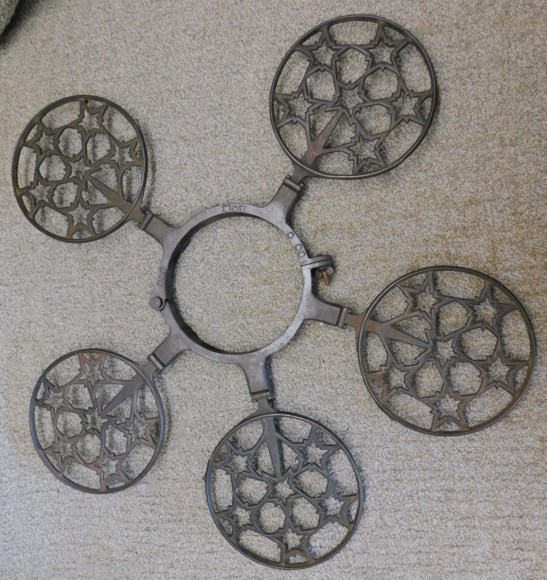

The next three images are also shared courtesy of Carole & Larry Meeker.



★ This complete antique 5 trivet folding stovepipe set with patent date May 8, 1883 is currently available for purchase at the Meeker’s website.

Modern TRIVETREE reproduction

I’ve also seen a very nice modern reproduction of the cast iron stove pipe shelf signed TRIVETREE. The pattern on the shelves is different but it appears to function much as the 1883 version. The TRIVETREE fits a 6″ stove pipe.

Again, notice the two small feet on the reverse of each trivet which, along with the thick shank, allow it to be removed and placed on a flat surface for use as a trivet.

There’s limited documentation of the TRIVETREE available. I did find this archived comment in a January 2001 forum discussing stovepipe trivetrees.

“I saw an add for one in the Nov. 1979 issue of CS (Countryside & Small Stock Journal). Yes I know that was along time ago. It was sold by a company called Chelsea Stove Accessories out of Chelsea, Vermont. It is a clamp like thing that hooks to the pipe on a woodstove and forms a circle around it w/5 trivets that stand out from it or the trivets can be folded down. It says the uses include warming food or drying gloves.”

I’m attempting to locate a copy of that November 1979 issue of Countryside & Small Stock Journal (commonly shortened to Countryside). I placed a search on eBay and I’ve also have contacted the magazine’s publisher. If successful, I’ll post the 1979 TRIVETREE ad as a future Update.

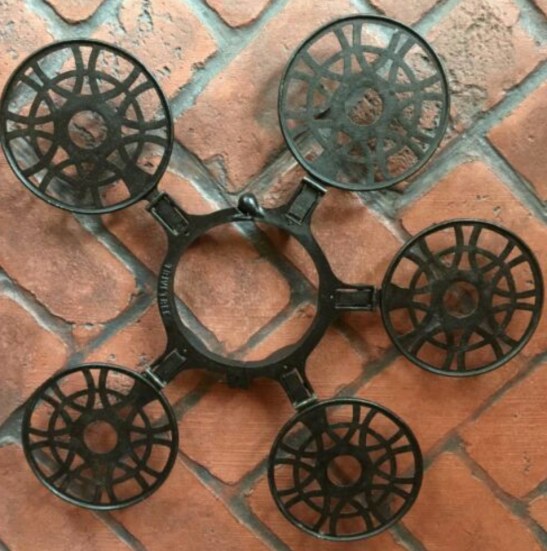

These two TRIVETREE images are shared courtesy of Connie Lilley.

★ This complete cast iron TRIVETREE stovepipe set is currently available for purchase from eBay Seller connashopping .
